Product feture:
1.The weight only 90g
2.Mute button design,quieter and safer to use

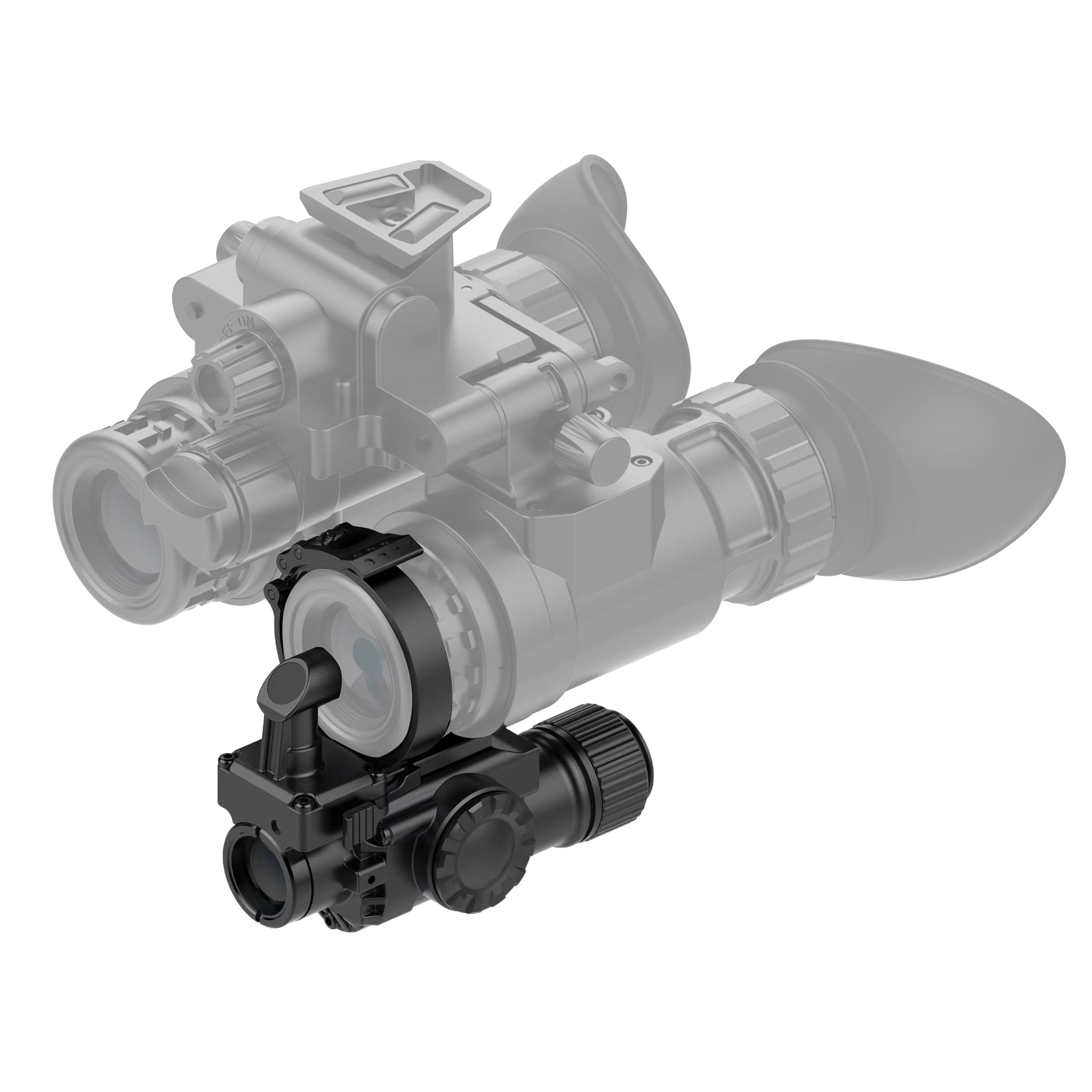

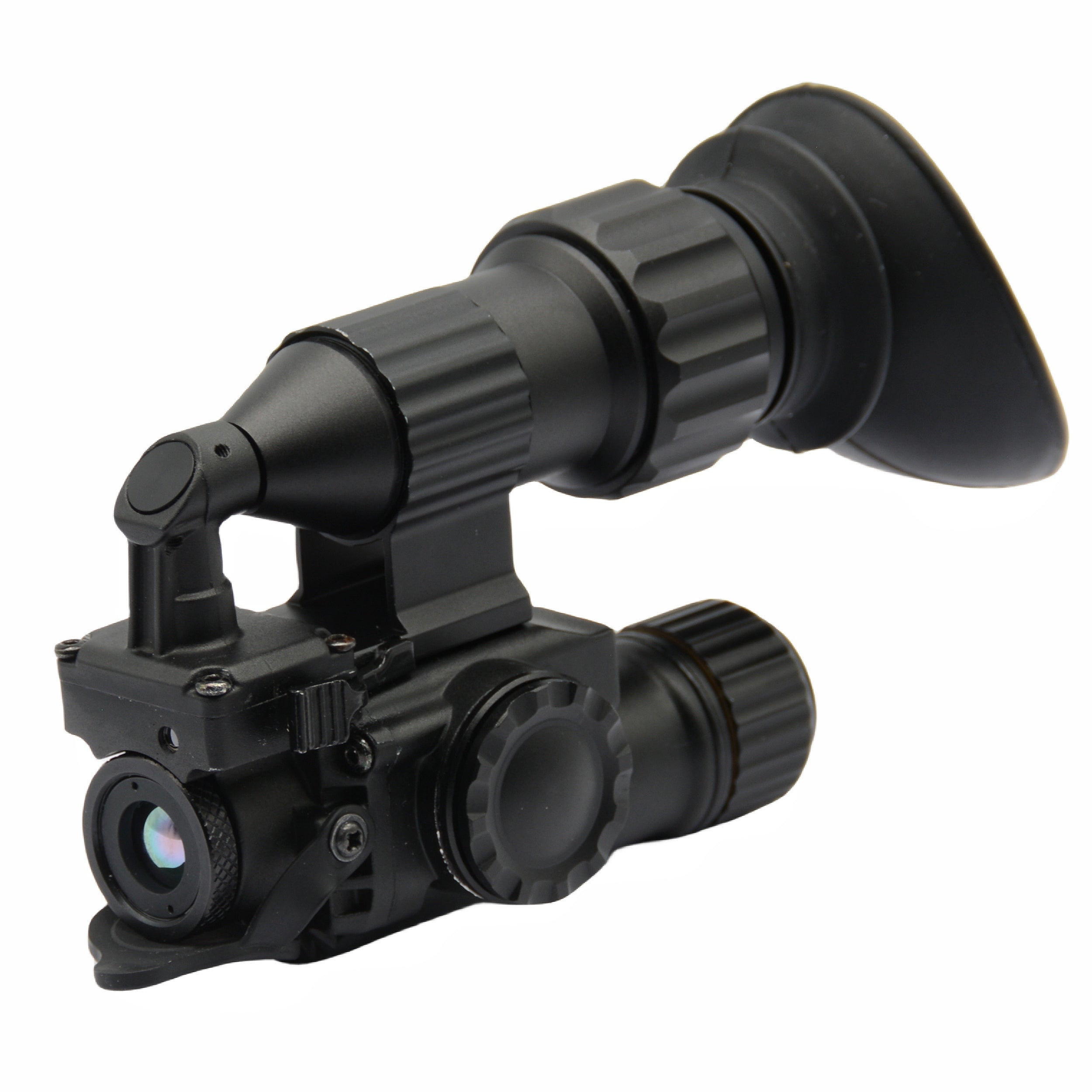

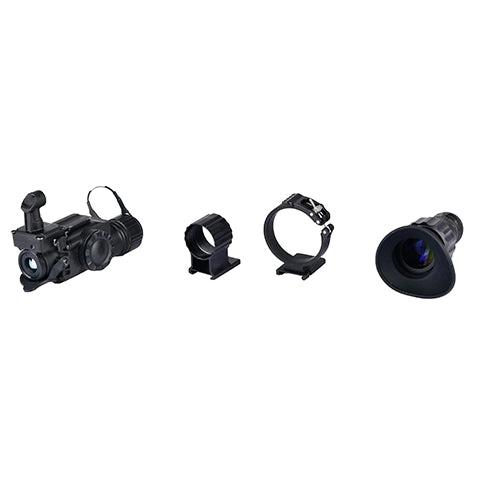

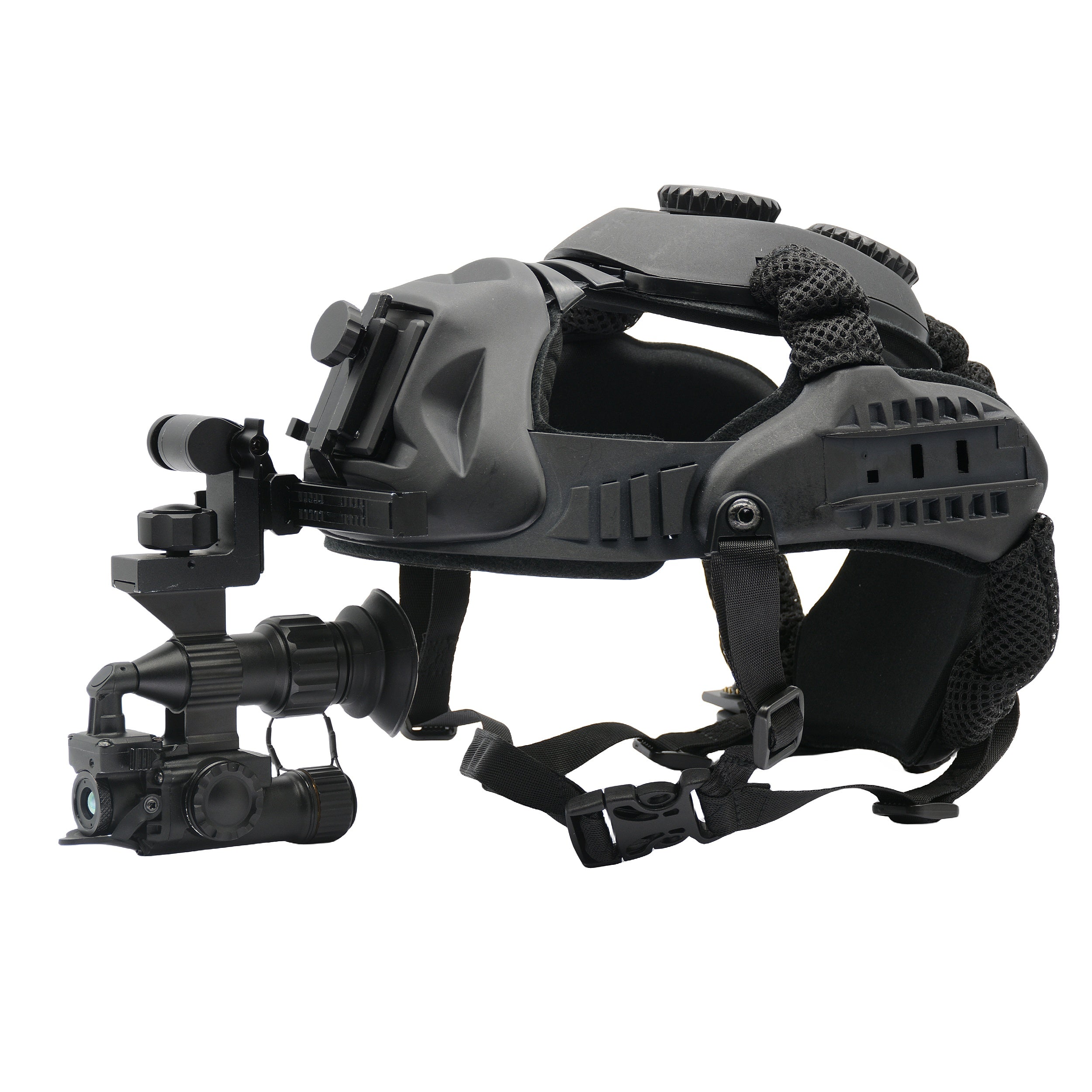

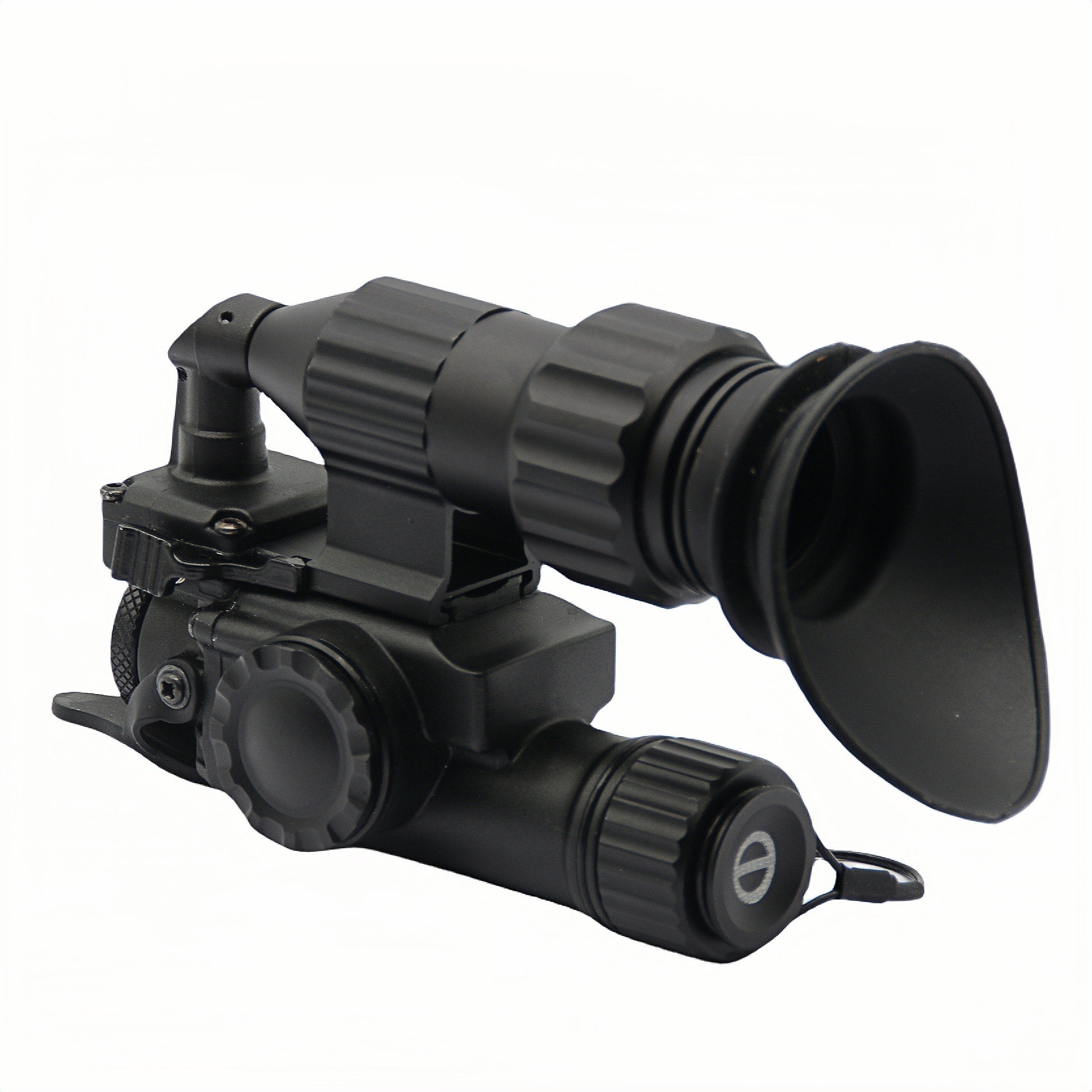

3.Head-mounted, handheld,clip-on fusion
4.Battery pack can be achieved long life
|
MODE |
DT-TW21 |
|
Volume:mm |
88x38x70(Handheld) 88x38x82(Head-mounted) 88x43x78(Clip-on) |
|
Weight:g(exclude battery) |
140(Handheld) 144(Head-mounted) 92(Clip-on) |
|
Battery: |
CR123A(1) / Battery pack |
|
Battery life:H |
3.5-4.5 |
|
Waterproofing grade |
IP67 |
|
Compatibility |
PVS31 PVS14 NVG18 DTS31 DTS35 DTG18 DTNH9 DTS13 |
|
Multifunction |
Handheld Head-mounted Clip-on |
|
Type of sensor |
unrefrigerated long wave infrared thermal radiometer |
|
Detector resolution |
384x288 |
|
Applicable wavelength:um |
8-12um |
|
Amplification factor: |
X 1.2 (Handheld/Head-mounted) X 1.0 (Clip-on) |
|
Field of view:FOV |
32°(Clip-on) 36°(Handheld/Head-mounted) Center of circle |
|
Focal distance of objective: |
fixed-focus |
|
Objective aperture: |
F1.0 |
|
Luminance: |
adjustable |
|
Focussing distance: |
250mm~∞ |
|
Image model: |
