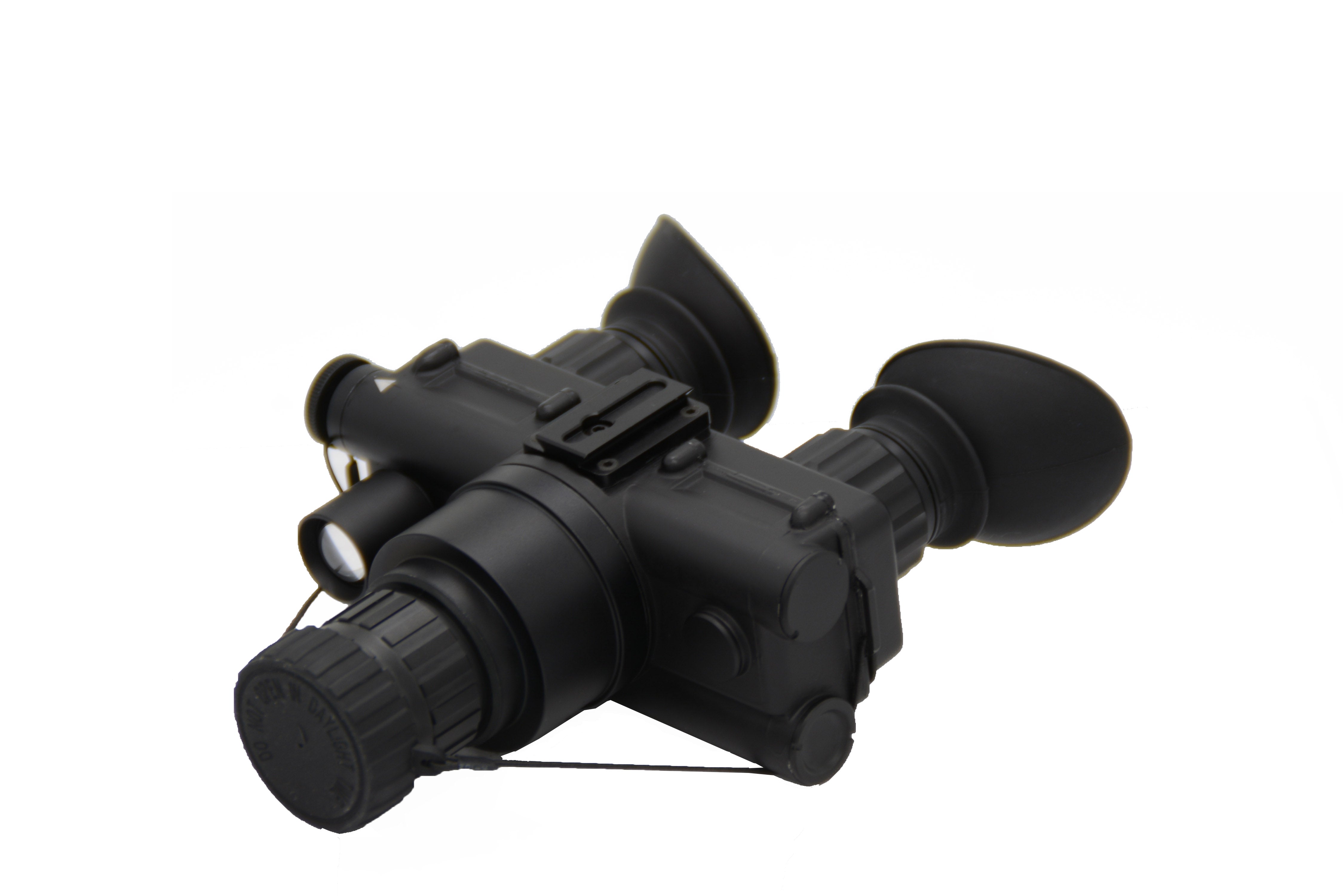

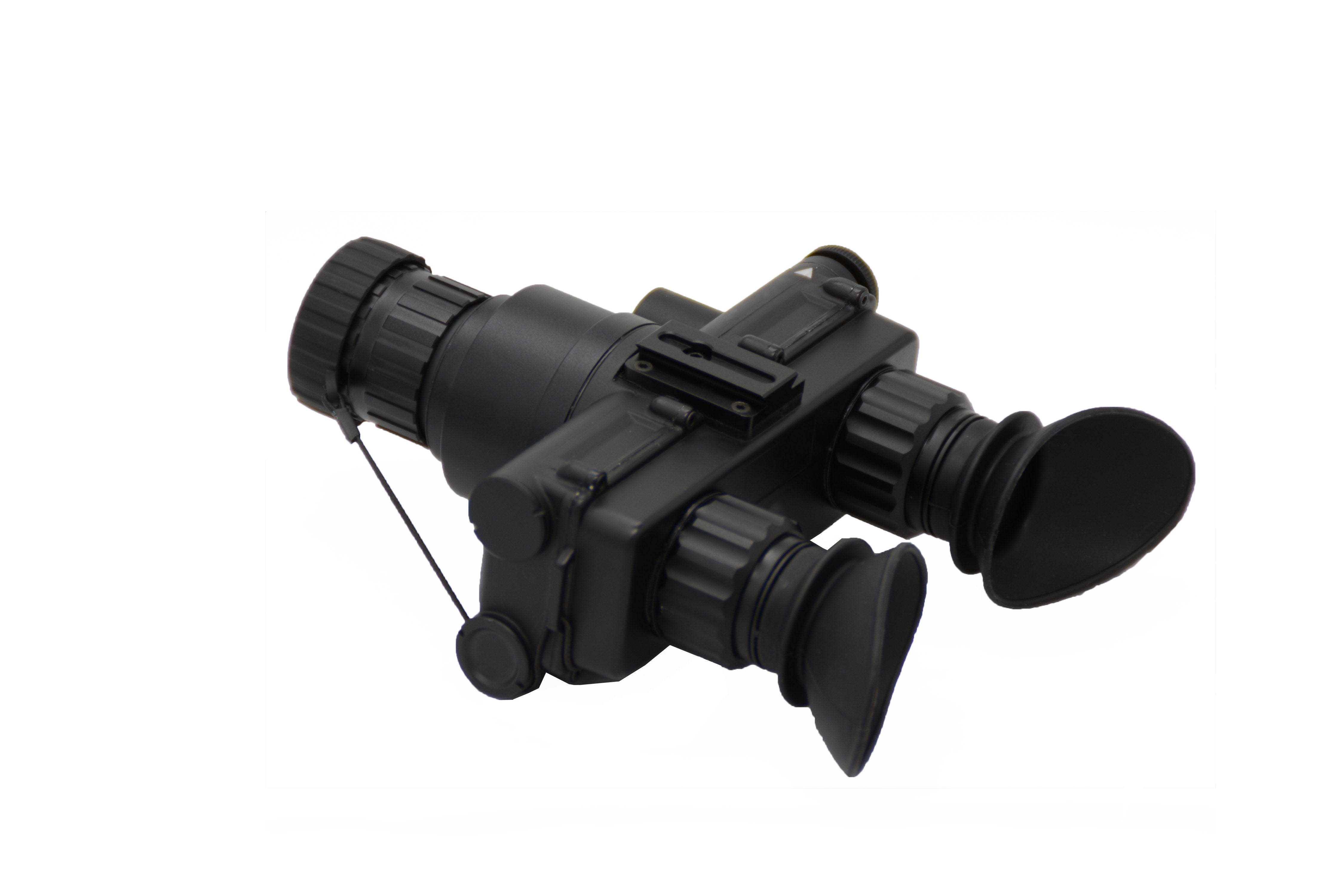

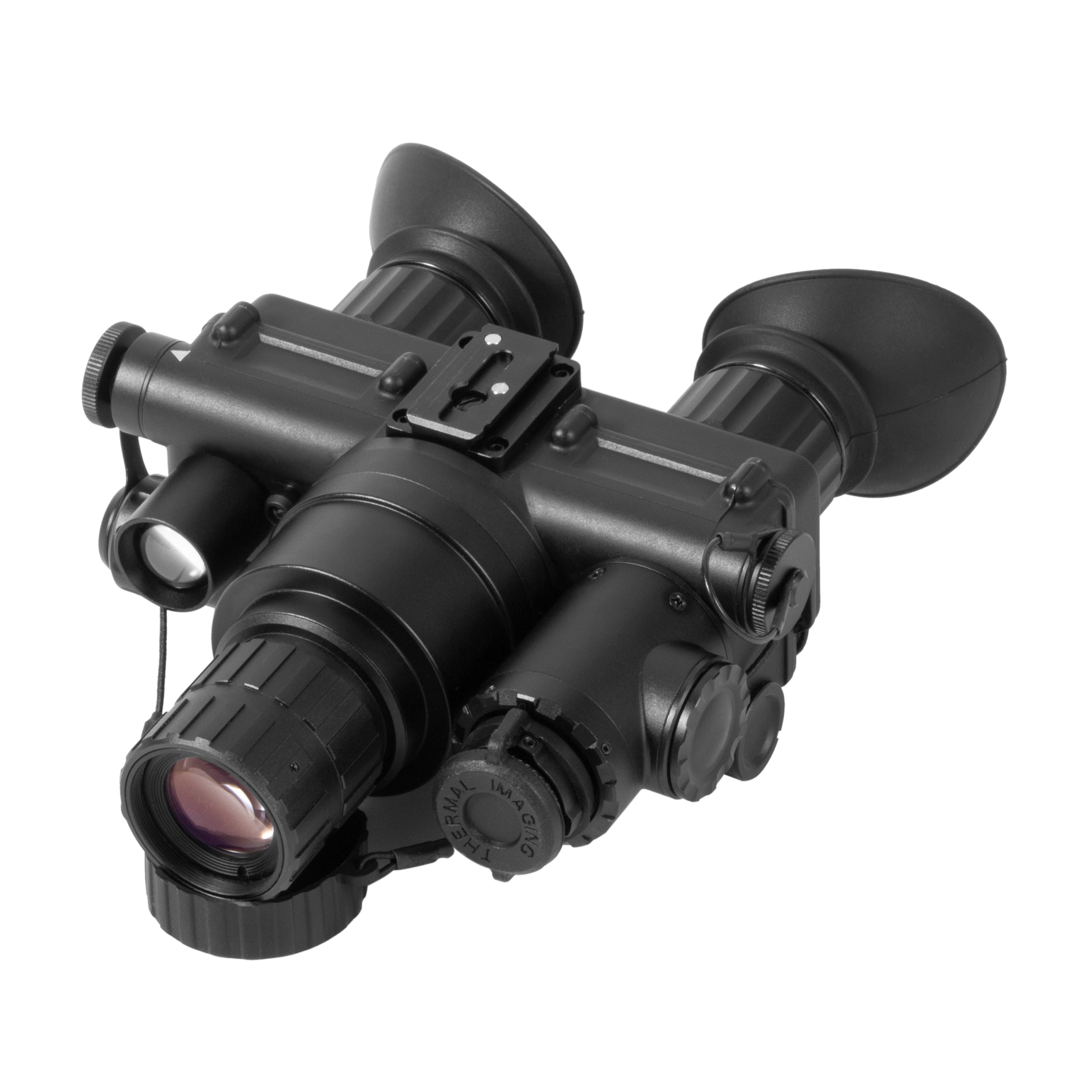

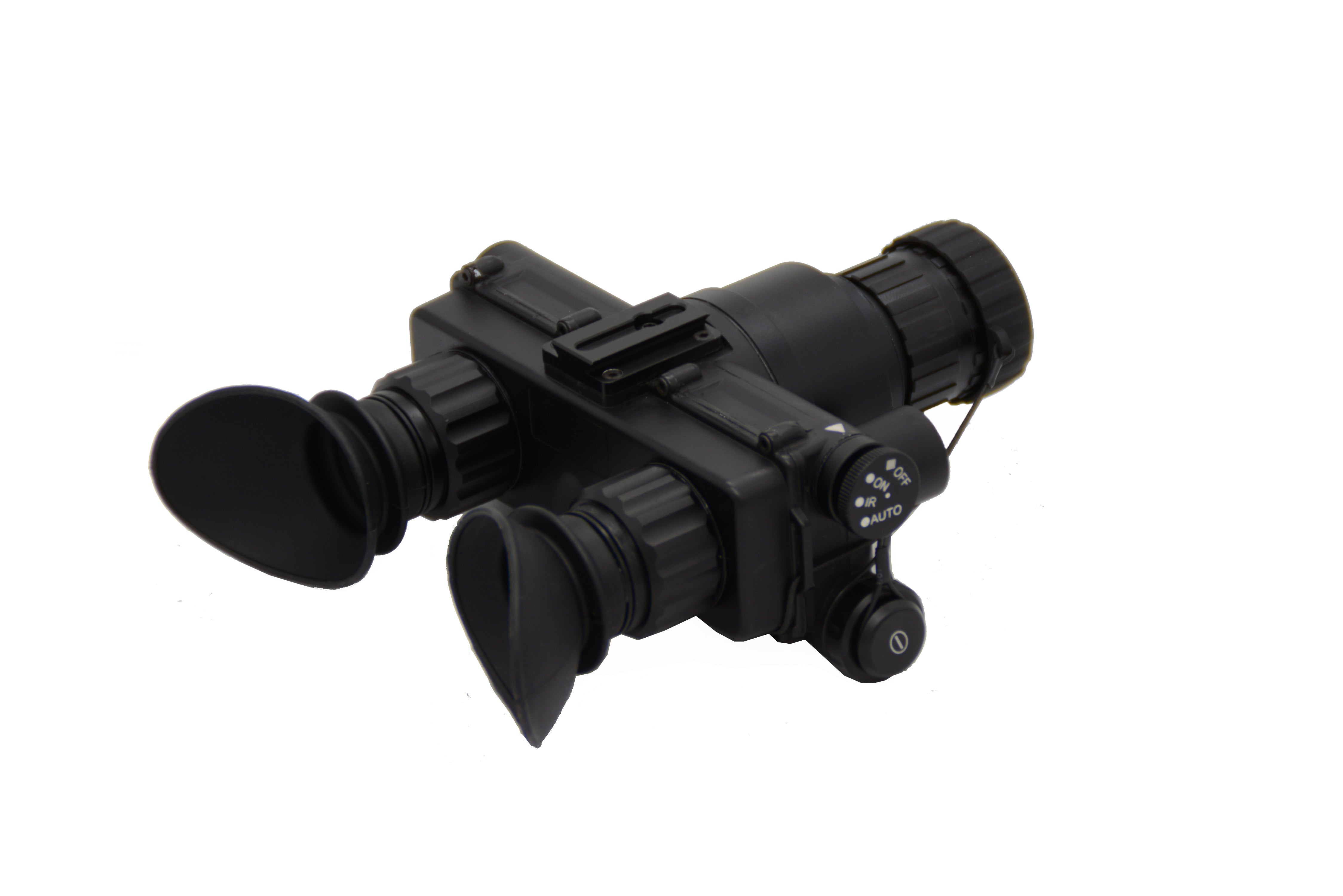

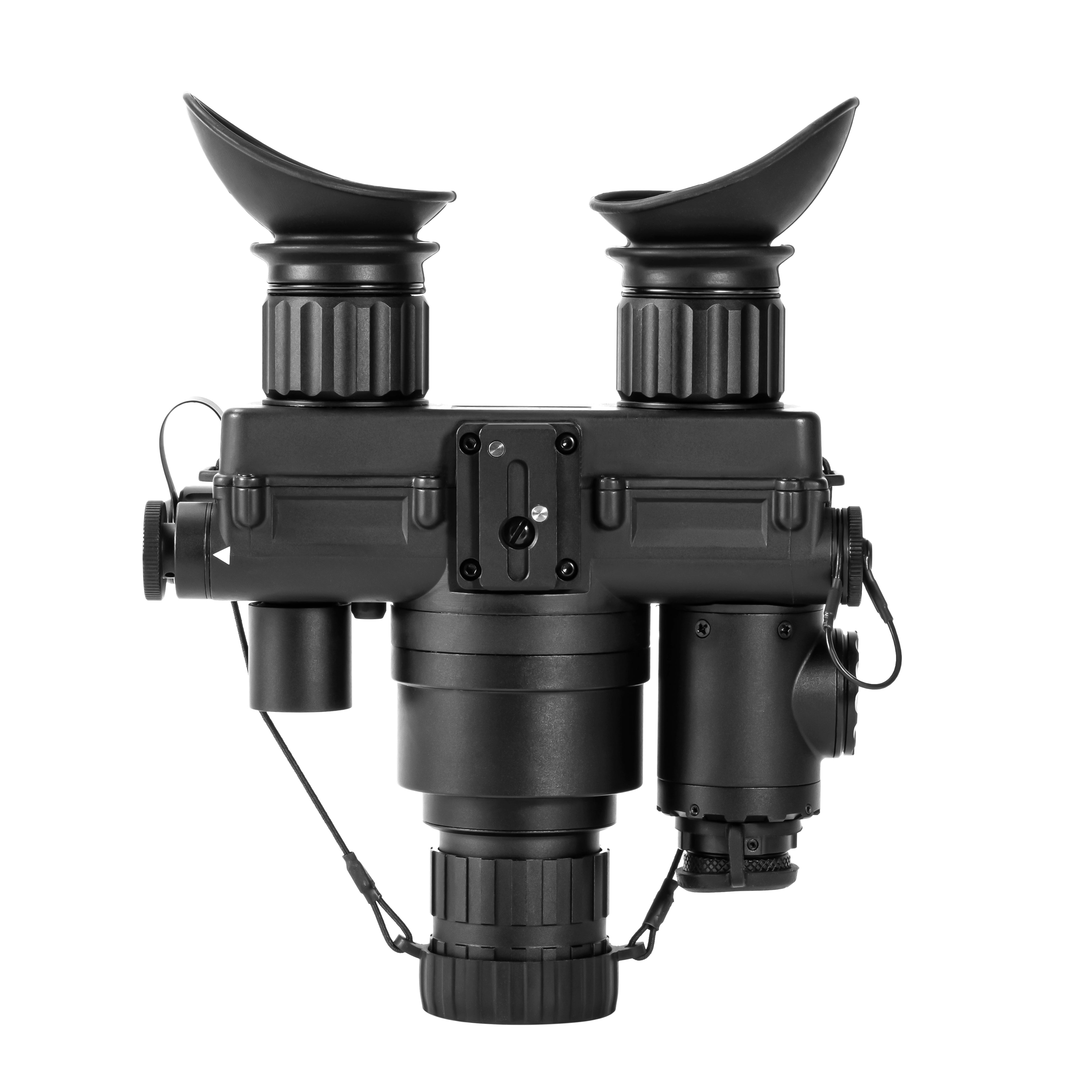

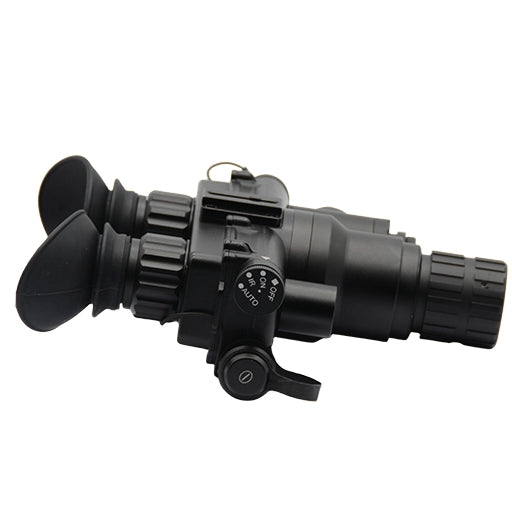

Night Vision Goggles PVS7

$1,579.00

Product feture:

1.All metal housing, with excellent performance, small size, light weight .

2. Eyepiece spacing adjustable and Flip up down ON/OFF . (must use the original Detyl mounts).

3. Video output, Wifi transmission can be achieved through Wifi signal transmitter .

4. The magnification can be changed by changing the objective lens (or connecting the A-focal lens)

5. Thermal imaging: one-button switch, easy to operate.

Technical specifications:

MODE	PVS7	PVS7（Thermal fusion）
Generation	Gen 2+/Gen3(optional)	Gen 2+/Gen3(optional)
Magnification	1X(3X/4X/5X)	1X(3X/4X/5X)
FOV(°)	42+/-3	42+/-3
Adjustable range of eye distance	65+/-5	65+/-5
Diopter	+/-5	+/-5
Total Darkness IR System	YES	YES
Automatic Brightness Control	YES	YES
Bright Light Cut-off	YES	YES
Infrared Illuminator	Built-in(850nm 20mW)	Built-in(850nm 20mW)
IR Indicator	YES	YES
Low Battery Indicator	YES	YES
Material	Aviation aluminum	Aviation aluminum
Power supply(v)	2.6-4.2V	2.6-4.2V
Battery type(v)	AA(2)	AA (2)/ Battery pack
Operating Temperature（℃）	-40/+50	-40/+50
Relative humidity	5%-98%	5%-98%
Waterproof	IP65（IP67 Optional）	IP65（IP67 Optional）
Dimensions (mm) (without eye mask)	130x130x56	115x127x69
Weight(g)	356g(housing)/410g(finished)	398g(housing)/468g(finished)
Video output function parameters
Video acquisition power supply（Optional）	external power source 5V 1W	external power source 5V 1W
video resolution（Optional）	Video 1Vp-p SVGA	Video 1Vp-p SVGA
Thermal imaging module parameters
Type of sensor ：		Unrefrigerated long wave infrared thermal radiometer
Detector resolution ：		384x288
Applicable wavelength :um		8-12um
Objective lens focal length:		fixed-focus
Objective aperture:		F1.0
Brightness:		adjustable
Focusing distance:		250mm~∞
Image mode:		White heat/black heat/green bottom/red/hook edge
Detection distance: (1.7M people)		Detection range: 450M Identification range: 350M
Battery Pack:		CR123（A）x4 2.4~4.2V

Power supply	Battery pack supply 5V 1W	Battery pack supply 5V 1W
Resolution	Video 1Vp-p SVGA	Video 1Vp-p SVGA
Thermal imaging
Type of sensor ：		Unrefrigerated long wave infrared thermal radiometer
Detector resolution ：		384x288
Applicable wavelength :um		8-12um
Objective lens focal length:		fixed-focus
Objective aperture:		F1.0
Brightness:		adjustable
Focusing distance:		250mm~∞
Image mode:		White/black/green/metal/highlight/outline
Detection range: (1.7M people)		Detection: 450M Identification : 350M
Battery:		CR123（A）x4 2.4~4.2V

Product feture:

1.All metal housing, with excellent performance, small size, light weight .

2. Eyepiece spacing adjustable and Flip up down ON/OFF . (must use the original Detyl mounts).

3. Video output, Wifi transmission can be achieved through Wifi signal transmitter .

4. The magnification can be changed by changing the objective lens (or connecting the A-focal lens)

5. Thermal imaging: one-button switch, easy to operate.
